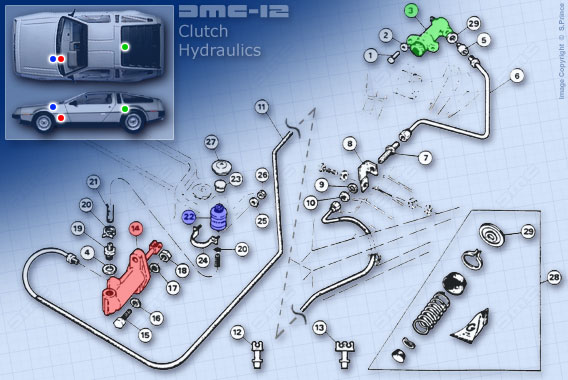

All primary components and their approximate locations are highlighted in colour.
Fig
Part No.
Key
Description
Qty
Updates / Remarks
Price £
Buy
1
SP10048
Screw M7
£0.57
2
SP10049
Washer-Spring M7
£0.04
3
100843G
Slave Cyl, Clutch (O.E.M.)
£62.96
4
SP10258
Plastic Washer
188
£0.38
5
105464
Adaptor
£6.46
6
106773
Clutch Pipe, Slave Cyl. to Line (N.O.S.)
£29.78
7
106898
Bulkhead Connector
£5.06
8
106320
Support Bracket
£0.78
9
106900
Shakeproof Wa M12
£0.29
10
106899
Nut M12
£0.79
11
108637G
Stainless Braided Fluid Line, Clutch
£68.77
12
SP10393
Single Pipe Clip
£0.23
13
SP10392
Clip Size 5 Double
£0.91
14
100462
Master Cyl, Clutch (O.E.M.)
£92.90
15
SP10636
Screw M10
£0.99
17
SP10033
Washer M10
£0.04
20
SP10830
Hose Band
£0.14
21
106753G
Hose (Resvr-Mas Cyl)
£3.92
22
106759
Clutch Reservoir
£28.87
23
106901
Clutch Fld Reservoir Cap
£7.69
24
105889
Clutch Resvr Mt Brkt
£3.02
25
SP10111
Washer M5
£0.04
26
SP10106
Nut M5
£0.25
27
106678
Plug
£1.90
28
109043
Clutch Service Kit
£8888.88
Note : The prices above are the total price for the quantity displayed (Unit price displayed where quantities aren't given). Prices were obtained from a survey of various DMC part suppliers carried out in March 2006.
A standard exchange rate has been applied to all overseas parts, therefore the displayed price is an approximation in £'s. Postage, packaging and import costs are excluded as cost savings can be made on bulk purchases from most suppliers. Click on the US, Euro or UK 'Buy' buttons to view the location and current availability of a particular part.
